Réparation du défaut
Sommaire :
- Étape 1 – Pose d’une échelle
- Étape 2 – Identification du cable en défaut
- Étape 3 – Nettoyage des cables
- Étape 4 – Localisation avec étiquette du cable
- Étape 5 – Ouverture de l’épissure en défaut
- Étape 6 – Déraccordement des paires mauvaises
- Étape 7 – Vérification de la suppression du défaut après déraccordement.
- Étape 8 – Raccordement des paires
- Étape 9 – Fermeture de l’épissure
- Étape 10 – Pose des mastiques d’étanchéité
- Étape 11 – Rangement des fils dans la protection d’épissure
- Étape 12 – Pose de la valve de test sur manchon MJC
- Étape 13 – Test d’étanchéité
- Étape 14 – Test d’étanchéité à la mousse de détection
![1-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-1-reparation-defaut-300x160.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-1-reparation-defaut-768x410.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-1-reparation-defaut-94x50.jpg 94w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-1-reparation-defaut-650x347.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-1-reparation-defaut-50x27.jpg 50w)
![1-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-2-reparation-defaut-300x165.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-2-reparation-defaut-768x421.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-2-reparation-defaut-91x50.jpg 91w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-2-reparation-defaut-650x357.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/1-2-reparation-defaut-50x27.jpg 50w)

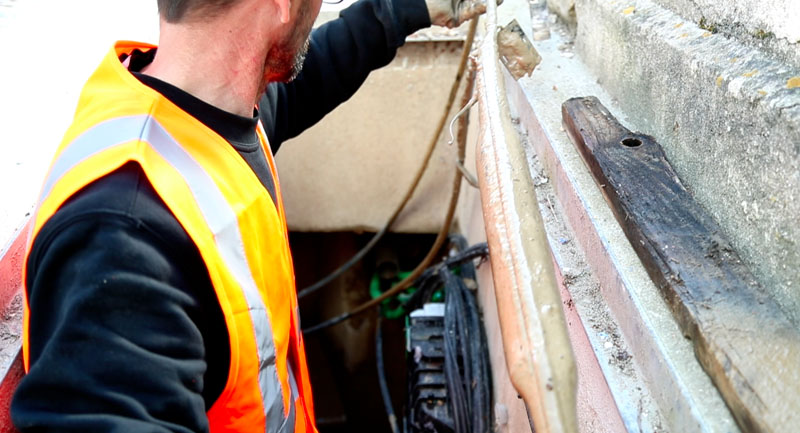

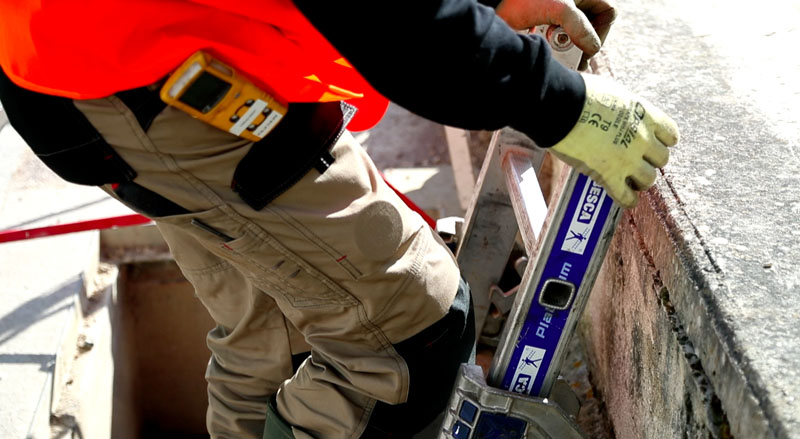

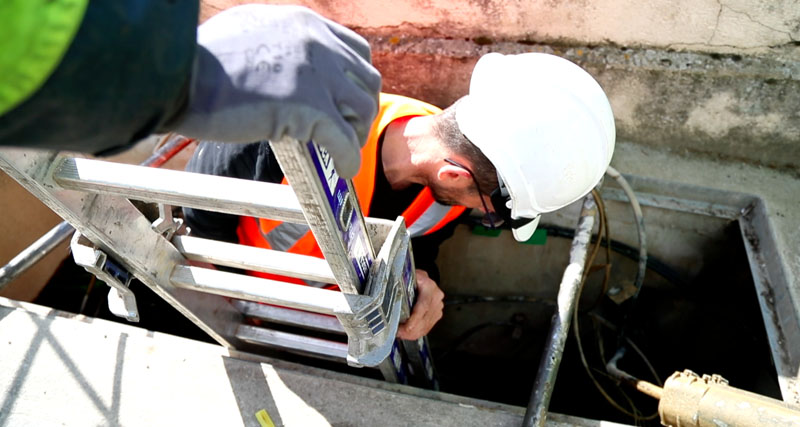

Étape 1 – Pose d’une échelle
Pose d’une échelle pour descendre en toute sécurité dans la chambre
![2-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-1-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-1-reparation-defaut-768x416.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-1-reparation-defaut-650x352.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-1-reparation-defaut-50x27.jpg 50w)
![2-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-2-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-2-reparation-defaut-768x420.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-2-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-2-reparation-defaut-650x355.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/2-2-reparation-defaut-50x27.jpg 50w)

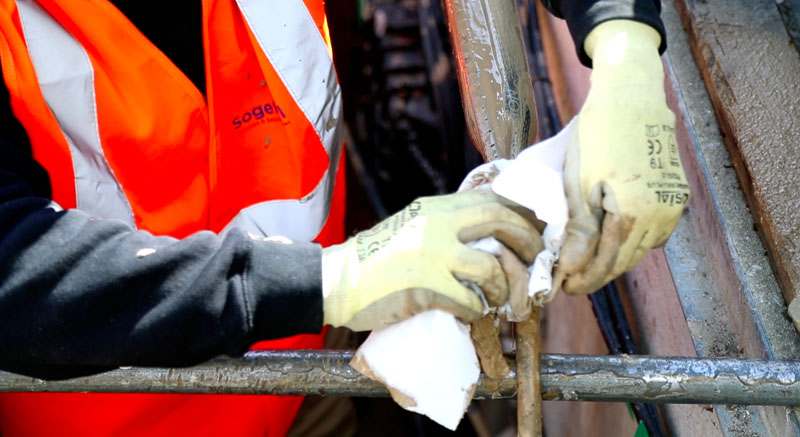

Étape 2 – Identification du câble en défaut
Recherche et identification du câble en défaut.
![3-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-1-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-1-reparation-defaut-768x417.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-1-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-1-reparation-defaut-50x27.jpg 50w)
![3-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-2-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-2-reparation-defaut-768x418.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-2-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-2-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/3-2-reparation-defaut-50x27.jpg 50w)

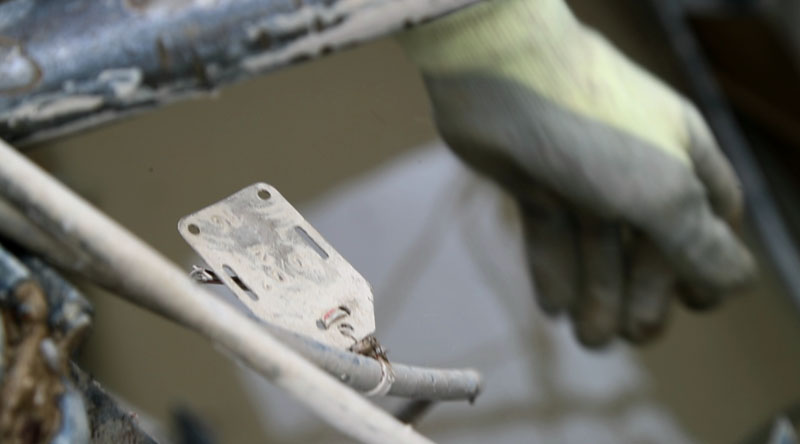

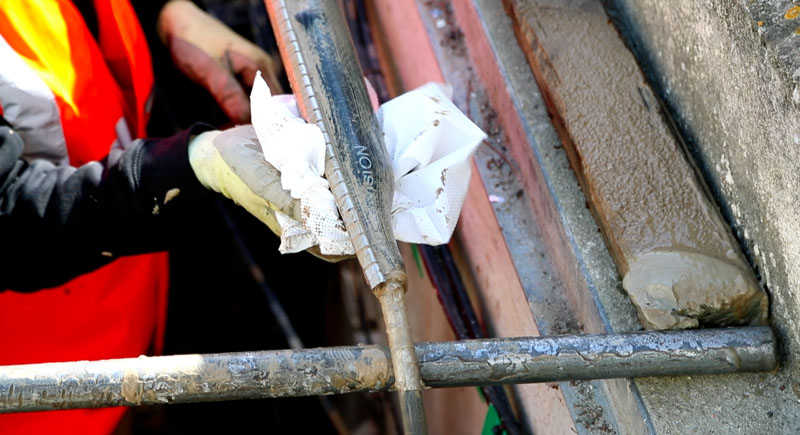

Étape 3 – Nettoyage des câbles
Nettoyage des câbles avant pose de la protection d’épissure
![4-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-1-reparation-defaut-300x167.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-1-reparation-defaut-768x426.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-1-reparation-defaut-90x50.jpg 90w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-1-reparation-defaut-650x361.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-1-reparation-defaut-50x28.jpg 50w)
![4-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-2-reparation-defaut-300x166.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-2-reparation-defaut-768x425.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-2-reparation-defaut-90x50.jpg 90w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-2-reparation-defaut-650x360.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/4-2-reparation-defaut-50x28.jpg 50w)

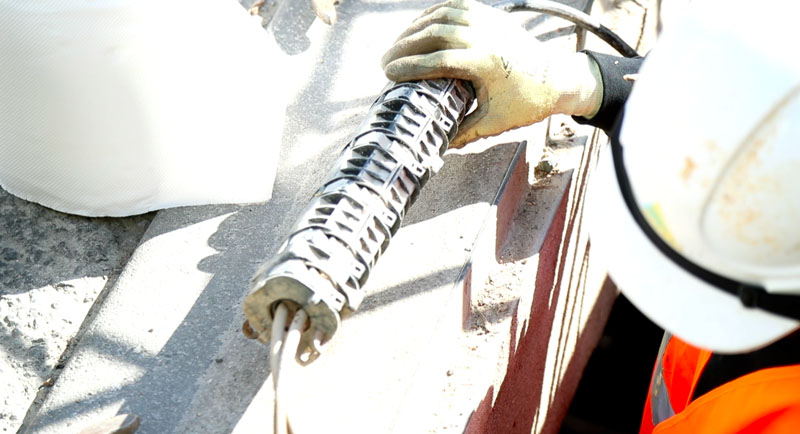

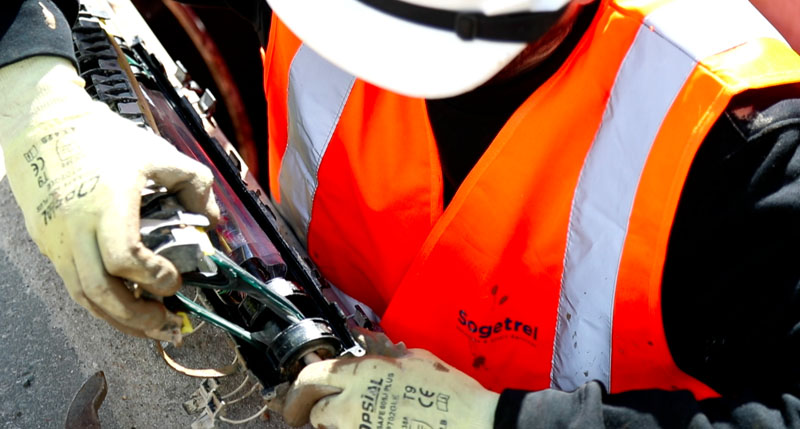

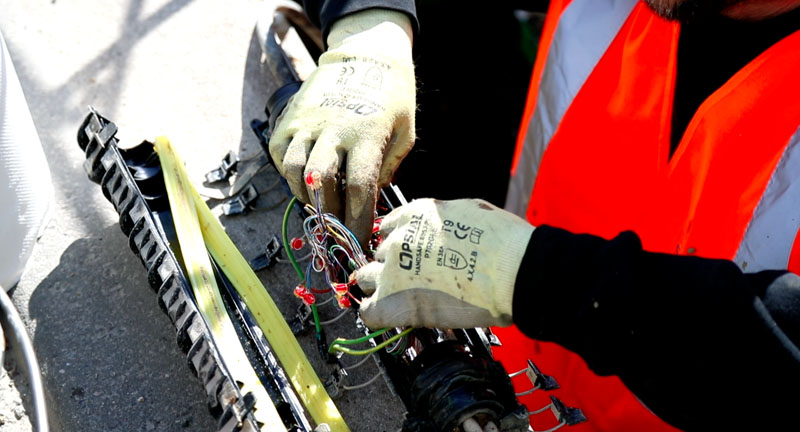

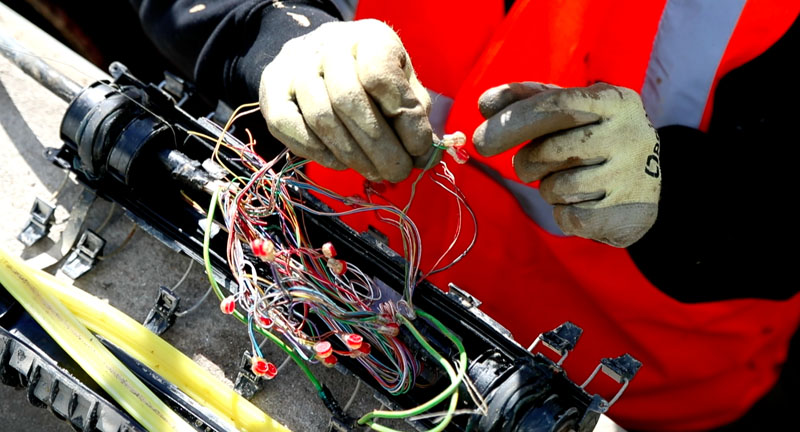

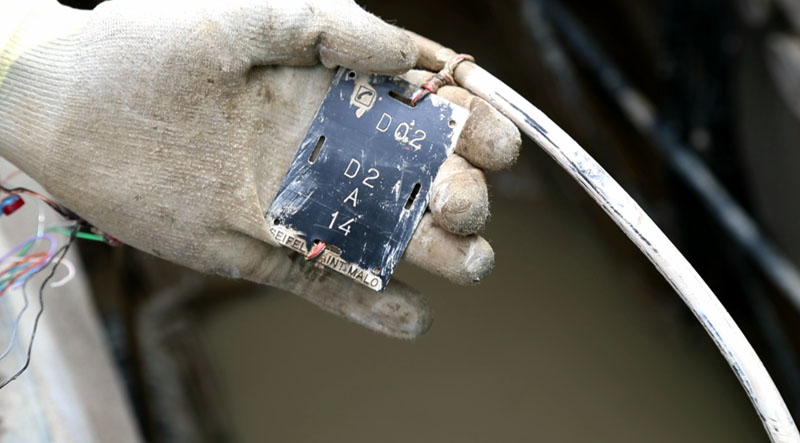

Étape 4 – Localisation avec étiquette du câble
Localisation avec étiquette du câble en défaut suivant les constitutions relevés sur le plan.
![5-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-1-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-1-reparation-defaut-768x417.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-1-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-1-reparation-defaut-50x27.jpg 50w)
![5-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-2-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-2-reparation-defaut-768x419.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-2-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-2-reparation-defaut-650x354.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-2-reparation-defaut-50x27.jpg 50w)
![5-3 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-3-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-3-reparation-defaut-300x161.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-3-reparation-defaut-768x412.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-3-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-3-reparation-defaut-650x349.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-3-reparation-defaut-50x27.jpg 50w)
![5-4 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-4-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-4-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-4-reparation-defaut-768x416.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-4-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-4-reparation-defaut-650x352.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-4-reparation-defaut-50x27.jpg 50w)
![5-5 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-5-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-5-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-5-reparation-defaut-768x415.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-5-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-5-reparation-defaut-650x351.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-5-reparation-defaut-50x27.jpg 50w)
![5-6 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-6-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-6-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-6-reparation-defaut-768x415.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-6-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-6-reparation-defaut-650x351.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/5-6-reparation-defaut-50x27.jpg 50w)

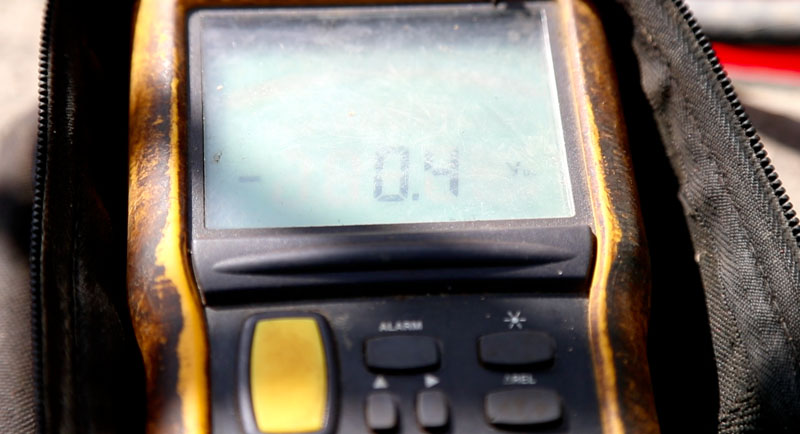

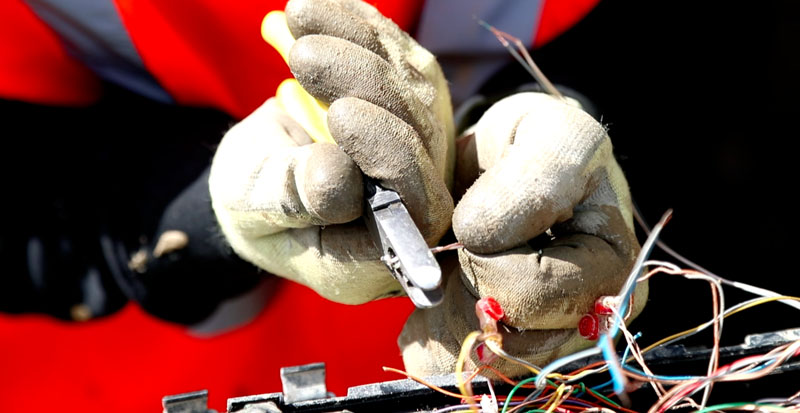

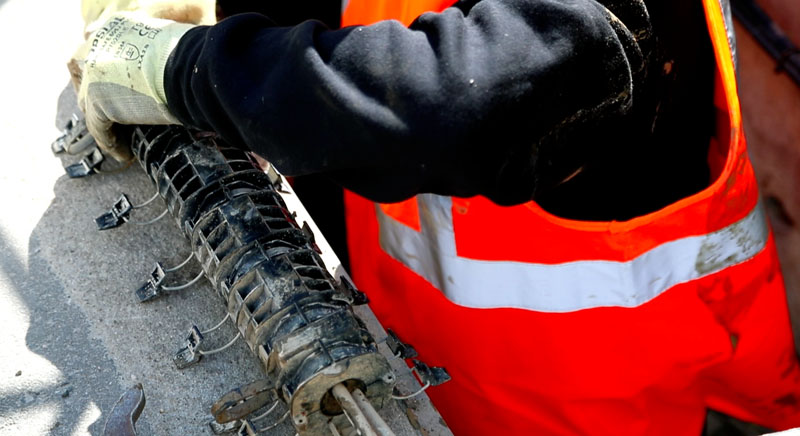

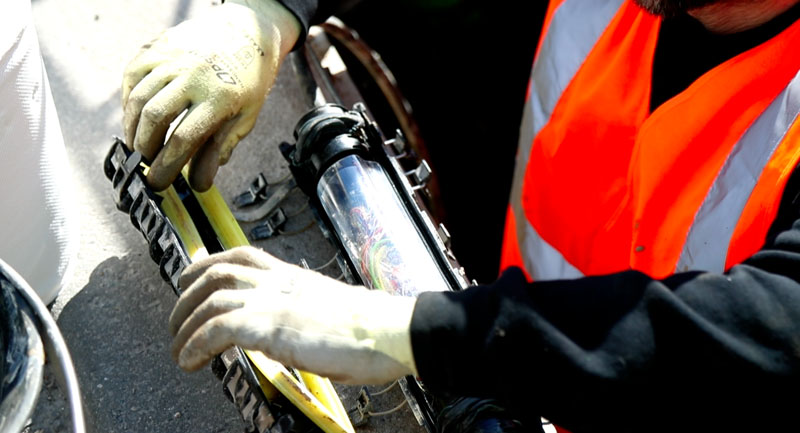

Étape 5 – Ouverture de l’épissure en défaut
![6-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-1-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-1-reparation-defaut-768x414.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-1-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-1-reparation-defaut-650x350.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-1-reparation-defaut-50x27.jpg 50w)
![6-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-2-reparation-defaut-300x155.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-2-reparation-defaut-768x396.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-2-reparation-defaut-97x50.jpg 97w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-2-reparation-defaut-650x336.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-2-reparation-defaut-50x26.jpg 50w)
![6-3 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-3-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-3-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-3-reparation-defaut-768x419.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-3-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-3-reparation-defaut-650x354.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-3-reparation-defaut-50x27.jpg 50w)
![6-4 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-4-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-4-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-4-reparation-defaut-768x415.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-4-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-4-reparation-defaut-650x351.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-4-reparation-defaut-50x27.jpg 50w)
![6-5 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-5-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-5-reparation-defaut-300x161.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-5-reparation-defaut-768x412.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-5-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-5-reparation-defaut-650x349.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-5-reparation-defaut-50x27.jpg 50w)
![6-6 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-6-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-6-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-6-reparation-defaut-768x417.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-6-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-6-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/6-6-reparation-defaut-50x27.jpg 50w)

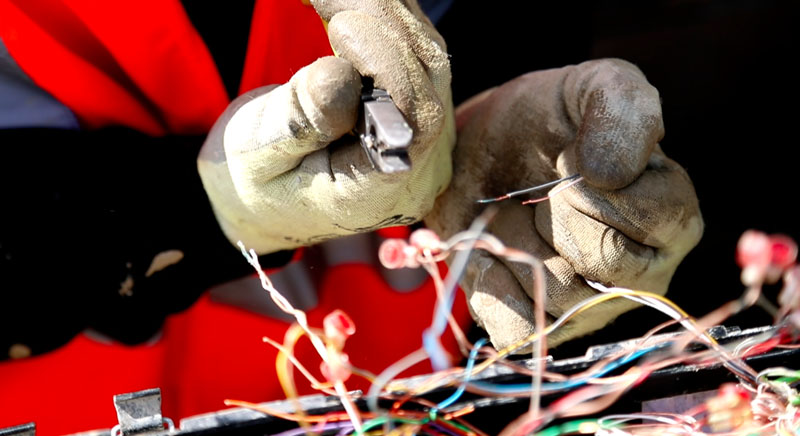

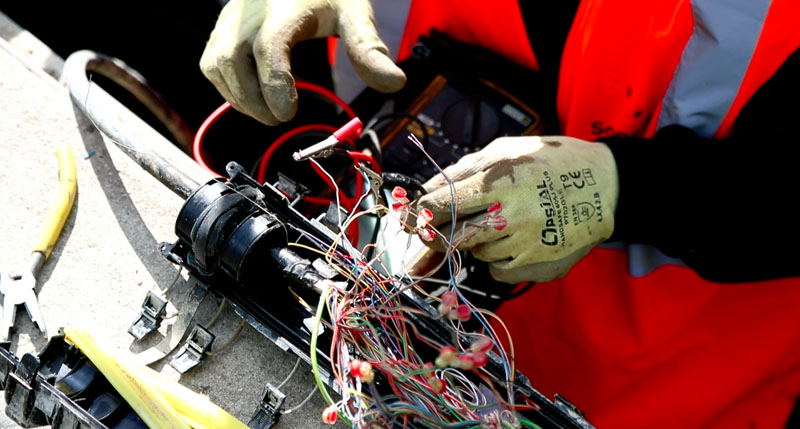

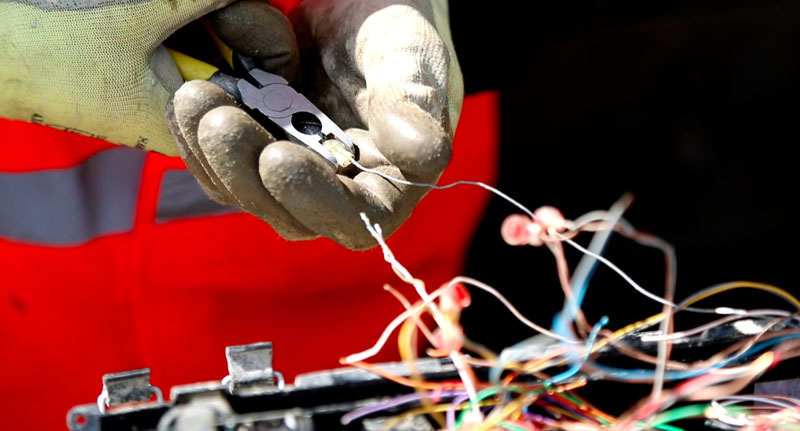

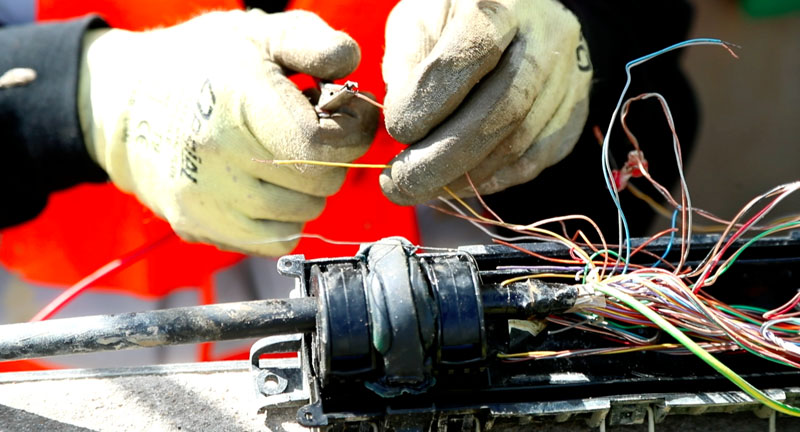

Étape 6 – Déraccordement des paires mauvaises
Dérracordement des paires dans l’épissure pour isoler le défaut et faciliter la localisation précise
![7-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-1-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-1-reparation-defaut-768x417.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-1-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-1-reparation-defaut-50x27.jpg 50w)
![7-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-2-reparation-defaut-300x165.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-2-reparation-defaut-768x421.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-2-reparation-defaut-91x50.jpg 91w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-2-reparation-defaut-650x357.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-2-reparation-defaut-50x27.jpg 50w)
![7-3 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-3-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-3-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-3-reparation-defaut-768x420.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-3-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-3-reparation-defaut-650x355.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-3-reparation-defaut-50x27.jpg 50w)
![7-4 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-4-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-4-reparation-defaut-300x161.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-4-reparation-defaut-768x412.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-4-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-4-reparation-defaut-650x349.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/7-4-reparation-defaut-50x27.jpg 50w)

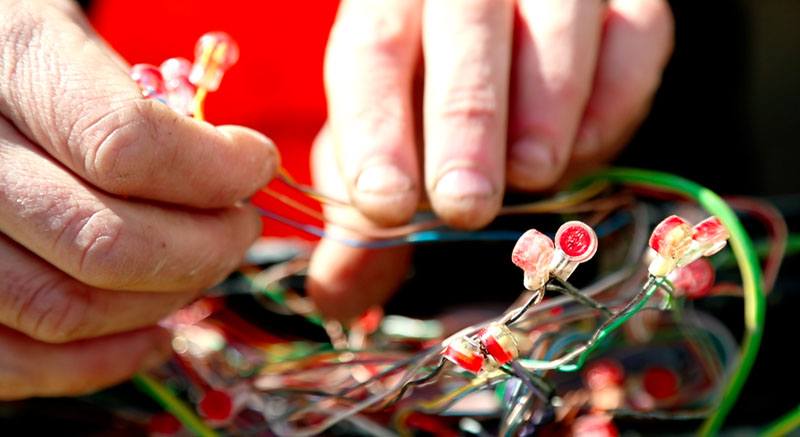

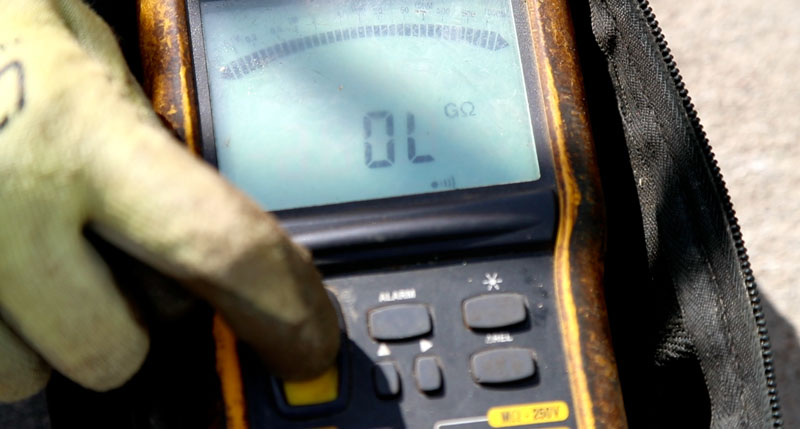

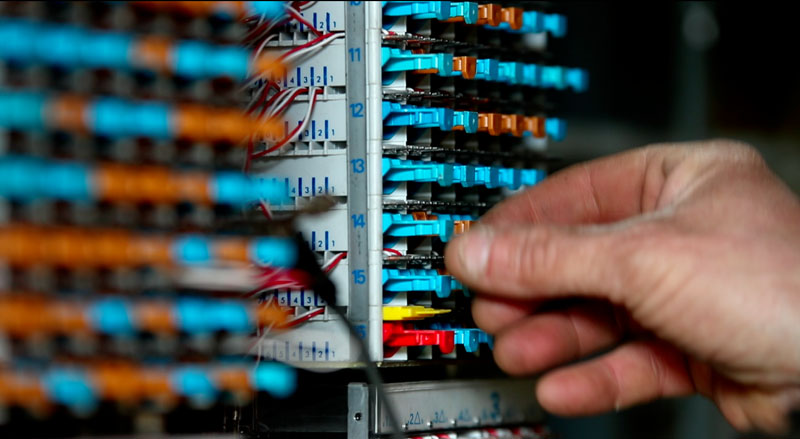

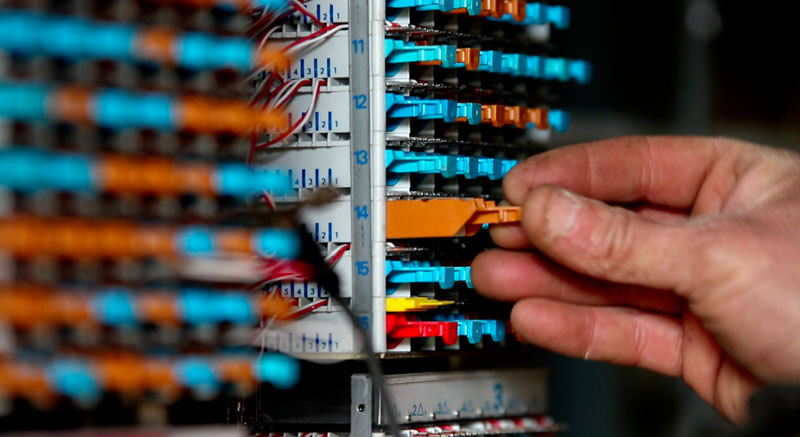

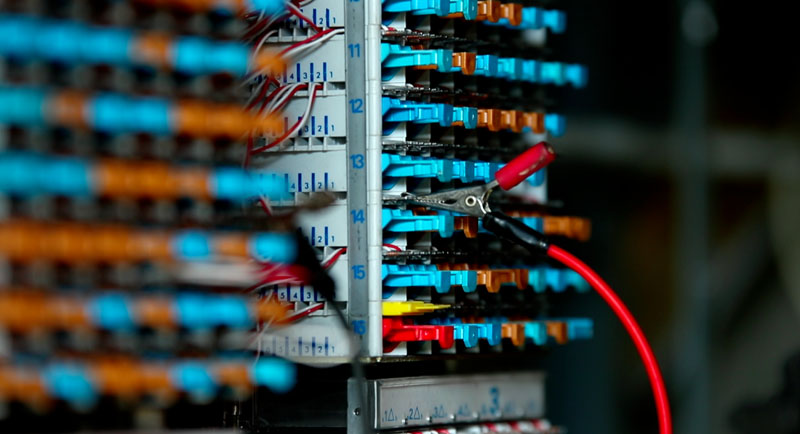

Étape 7 – Vérification de la suppression du défaut après déraccordement.
Utilisation du mégohmmètre et changement du parafoudre à la tête du répartiteur (respect des consignes).
La mesure est ok
![8-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-1-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-1-reparation-defaut-768x420.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-1-reparation-defaut-650x355.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-1-reparation-defaut-50x27.jpg 50w)
![8-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-2-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-2-reparation-defaut-768x417.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-2-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-2-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-2-reparation-defaut-50x27.jpg 50w)
![8-3 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-3-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-3-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-3-reparation-defaut-768x420.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-3-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-3-reparation-defaut-650x355.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-3-reparation-defaut-50x27.jpg 50w)
![8-4 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-4-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-4-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-4-reparation-defaut-768x420.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-4-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-4-reparation-defaut-650x355.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/8-4-reparation-defaut-50x27.jpg 50w)

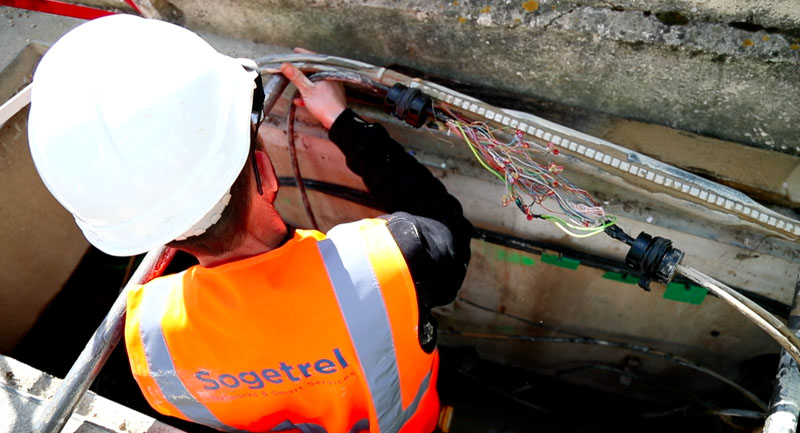

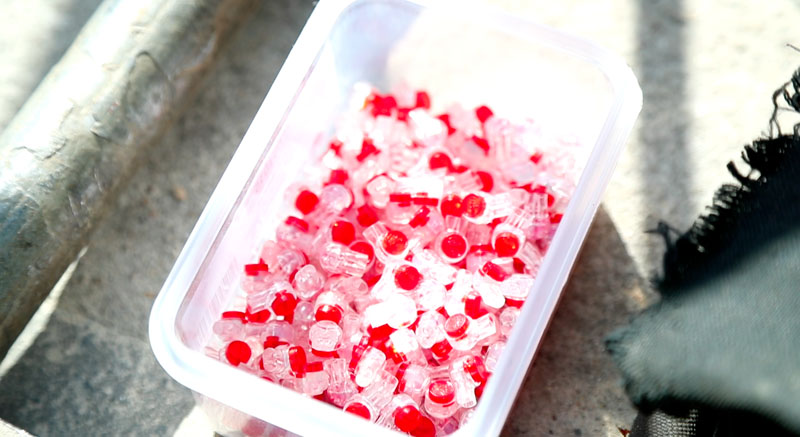

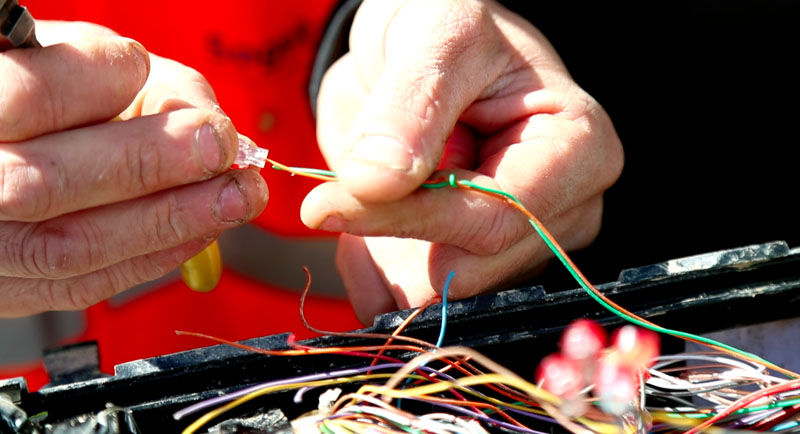

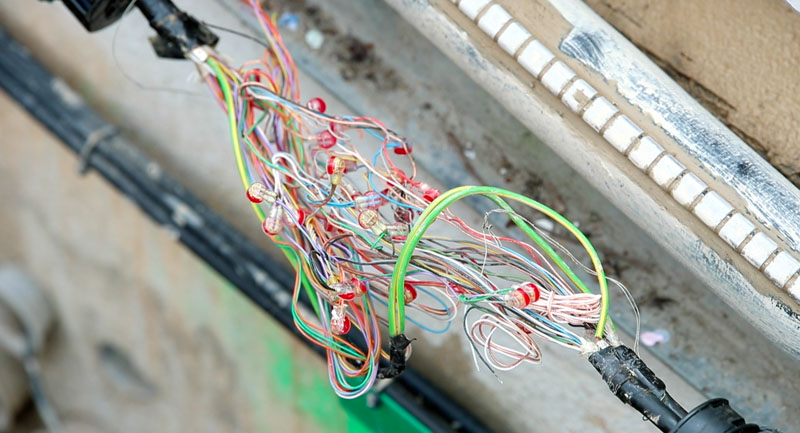

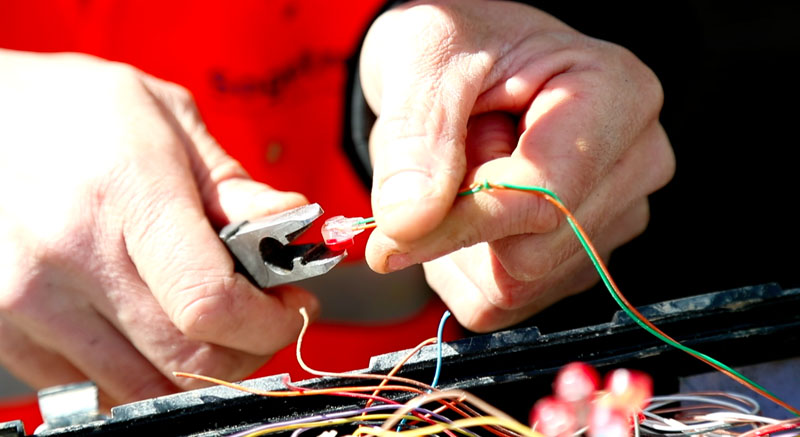

Étape 8 – Raccordement des paires
Raccordement des paires mauvaises après vérification de la suppression des défauts avec connecteur de type Scotchlok
![9-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-1-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-1-reparation-defaut-768x416.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-1-reparation-defaut-650x352.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-1-reparation-defaut-50x27.jpg 50w)
![9-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-2-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-2-reparation-defaut-768x416.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-2-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-2-reparation-defaut-650x352.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-2-reparation-defaut-50x27.jpg 50w)
![9-3 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-3-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-3-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-3-reparation-defaut-768x416.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-3-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-3-reparation-defaut-650x352.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-3-reparation-defaut-50x27.jpg 50w)
![9-4 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-4-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-4-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-4-reparation-defaut-768x418.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-4-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-4-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-4-reparation-defaut-50x27.jpg 50w)
![9-5 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-5-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-5-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-5-reparation-defaut-768x419.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-5-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-5-reparation-defaut-650x354.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/9-5-reparation-defaut-50x27.jpg 50w)

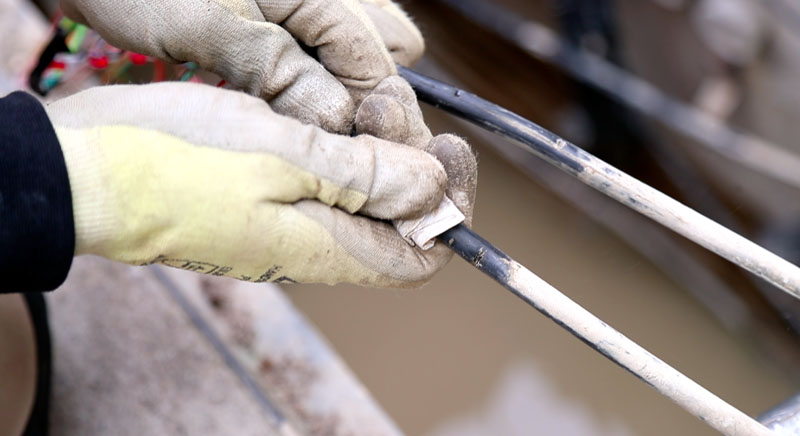

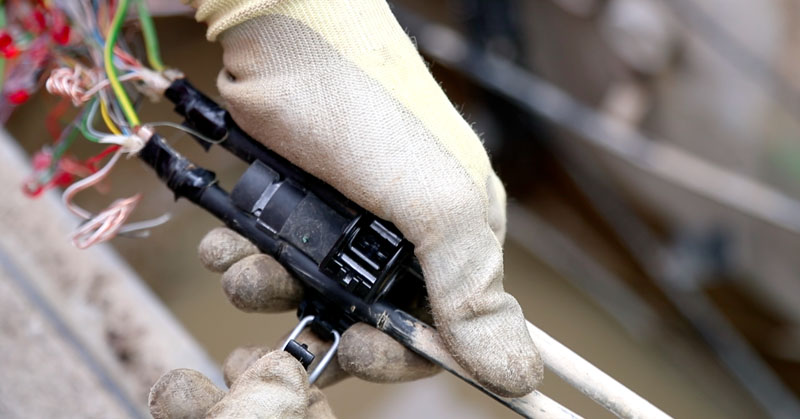

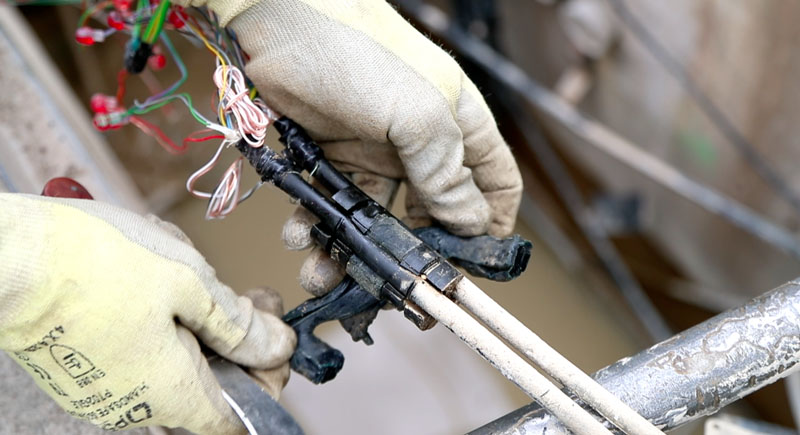

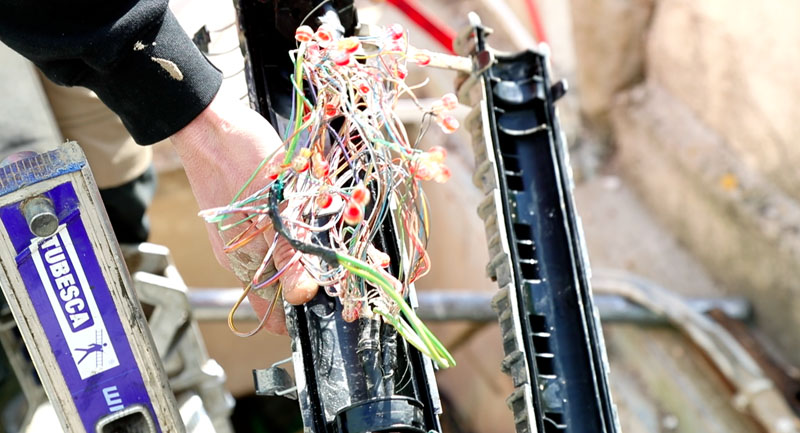

Étape 9 – Fermeture de l’épissure
Fermeture de l’épissure après réparation et nettoyage des câbles.
![10-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-1-reparation-defaut-300x157.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-1-reparation-defaut-768x402.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-1-reparation-defaut-95x50.jpg 95w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-1-reparation-defaut-650x340.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-1-reparation-defaut-50x26.jpg 50w)
![10-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-2-reparation-defaut-300x158.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-2-reparation-defaut-768x404.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-2-reparation-defaut-95x50.jpg 95w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-2-reparation-defaut-650x342.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/10-2-reparation-defaut-50x26.jpg 50w)

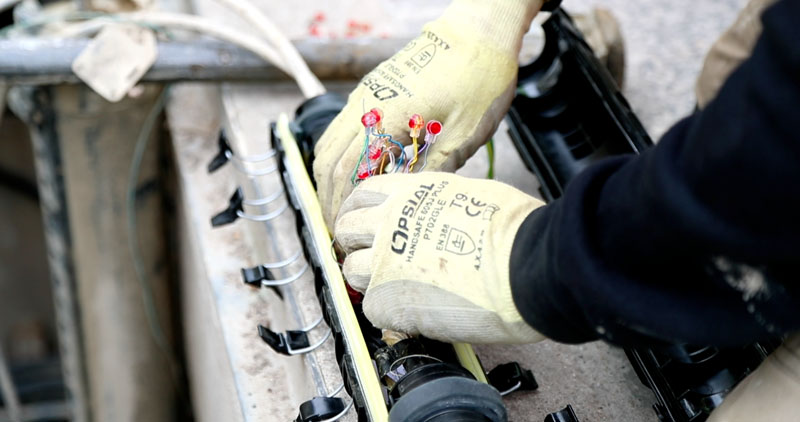

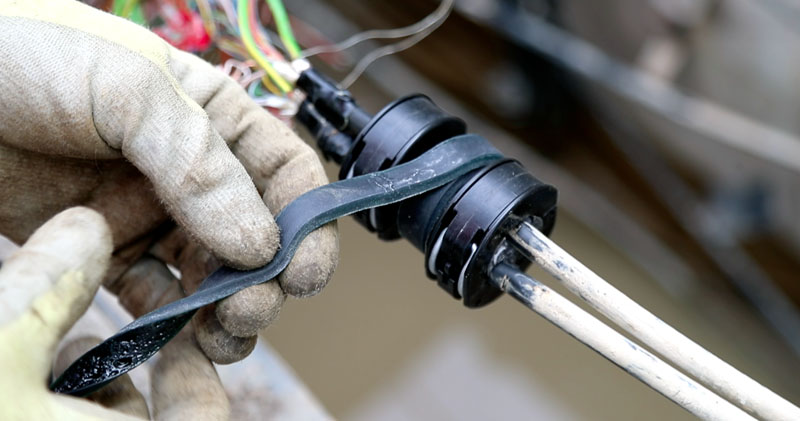

Étape 10 – Pose des mastiques d’étanchéité
Pose des mastiques d’étanchéité pour manchons type MJC
![11-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-1-reparation-defaut-300x158.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-1-reparation-defaut-768x405.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-1-reparation-defaut-95x50.jpg 95w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-1-reparation-defaut-650x343.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-1-reparation-defaut-50x26.jpg 50w)
![11-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-2-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-2-reparation-defaut-768x415.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-2-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-2-reparation-defaut-650x351.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/11-2-reparation-defaut-50x27.jpg 50w)

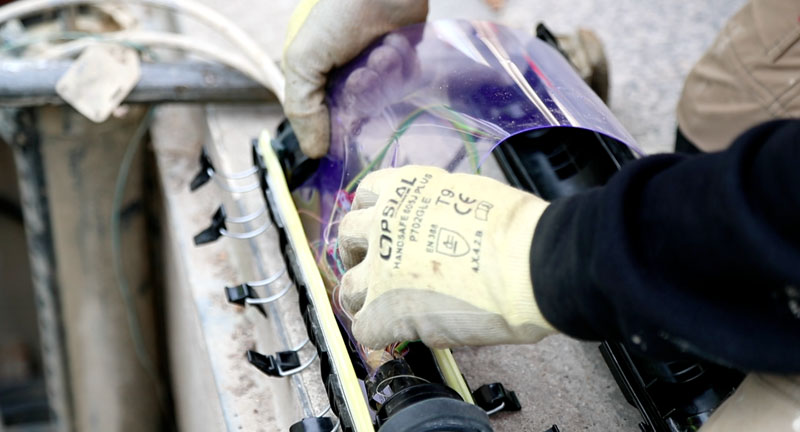

Étape 11 – Rangement des fils dans la protection d’épissure
Rangement des fils dans la protection d’épissure et pose du plastique de protection type MJC.
Pose du cable vert-jaune de continuité d’écran (1.5²)
![12 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/12-reparation-defaut.jpg)

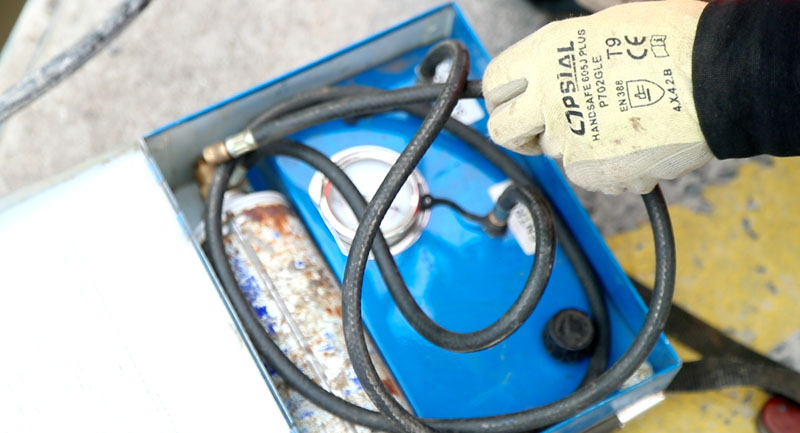

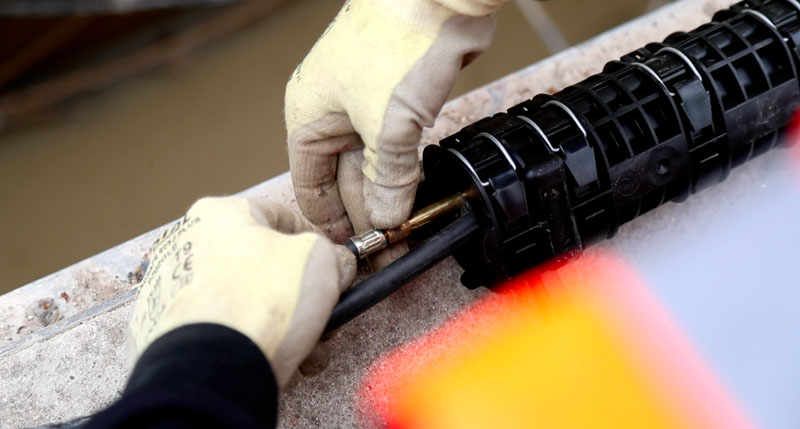

Étape 12 – Pose de la valve de test sur manchon MJC
Pose de la valve de test sur manchon MJC pour test d’étanchéité.
Pose du cable vert-jaune de continuité d’écran (1.5²)
![13-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-1-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-1-reparation-defaut-768x416.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-1-reparation-defaut-650x352.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-1-reparation-defaut-50x27.jpg 50w)
![13-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-2-reparation-defaut-300x161.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-2-reparation-defaut-768x412.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-2-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-2-reparation-defaut-650x349.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-2-reparation-defaut-50x27.jpg 50w)
![13-3 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-3-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-3-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-3-reparation-defaut-768x415.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-3-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-3-reparation-defaut-650x351.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-3-reparation-defaut-50x27.jpg 50w)
![13-4 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-4-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-4-reparation-defaut-300x164.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-4-reparation-defaut-768x419.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-4-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-4-reparation-defaut-650x354.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/13-4-reparation-defaut-50x27.jpg 50w)

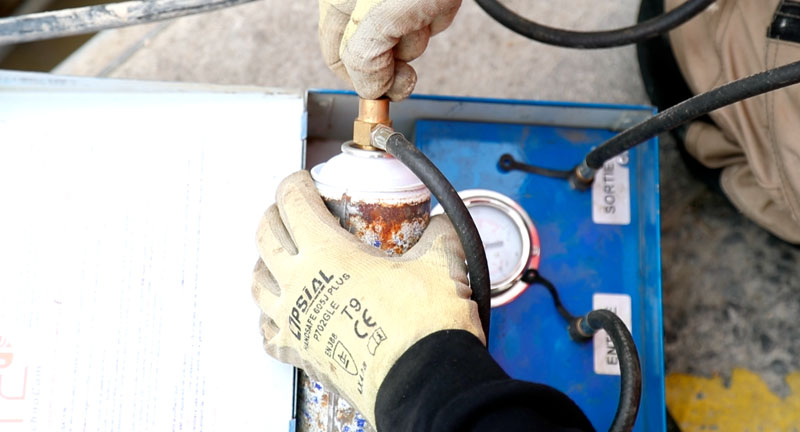

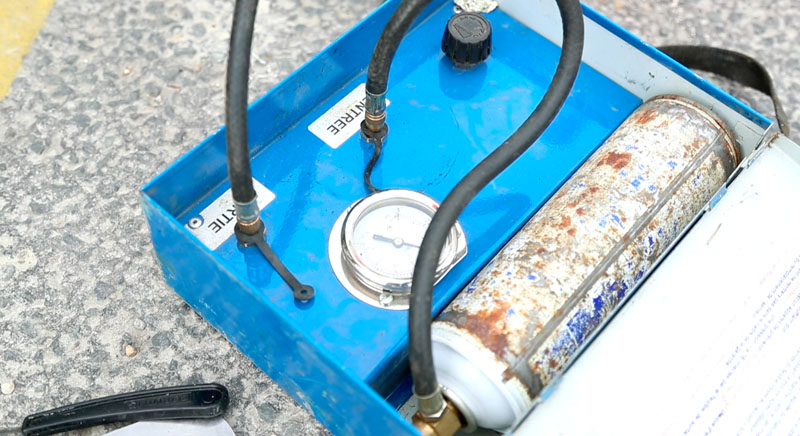

Étape 13 – Test d’étanchéité
Test d’étanchéité avec détecteur de fuite pression 500 millibars
Pose du cable vert-jaune de continuité d’écran (1.5²)
![14-1 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-1-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-1-reparation-defaut-300x163.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-1-reparation-defaut-768x417.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-1-reparation-defaut-92x50.jpg 92w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-1-reparation-defaut-650x353.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-1-reparation-defaut-50x27.jpg 50w)
![14-2 réparation défaut](https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-2-reparation-defaut.jpg 800w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-2-reparation-defaut-300x162.jpg 300w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-2-reparation-defaut-768x414.jpg 768w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-2-reparation-defaut-93x50.jpg 93w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-2-reparation-defaut-650x350.jpg 650w, https://lesplombiersdunumerique.org/wp-content/uploads/2022/04/14-2-reparation-defaut-50x27.jpg 50w)

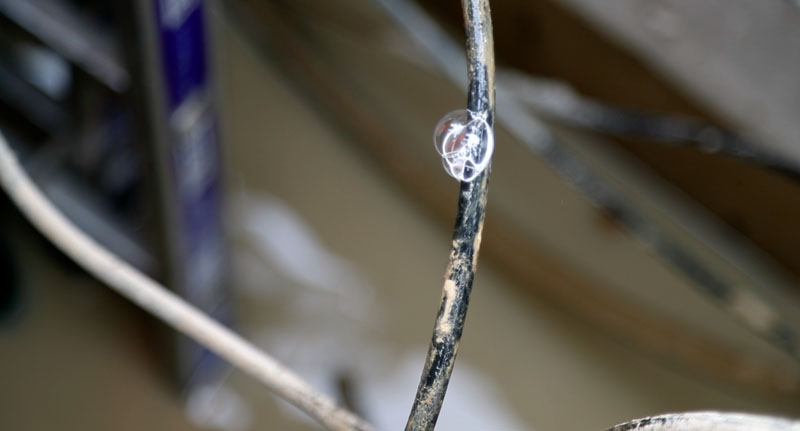

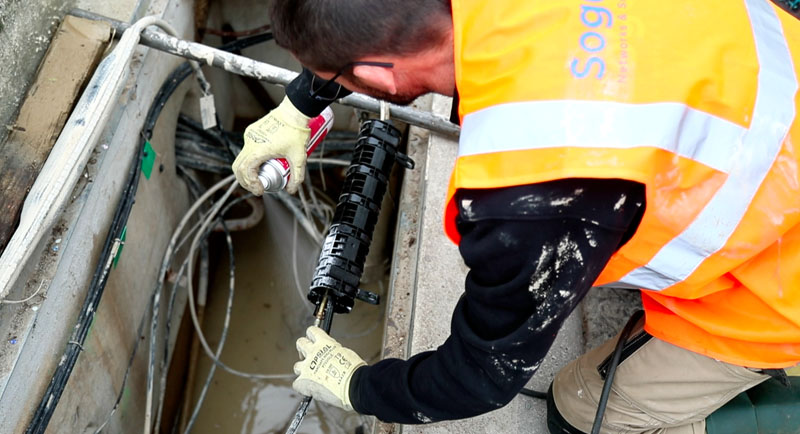

Étape 14 – Test d’étanchéité à la mousse de détection
Test à la mousse de détection
